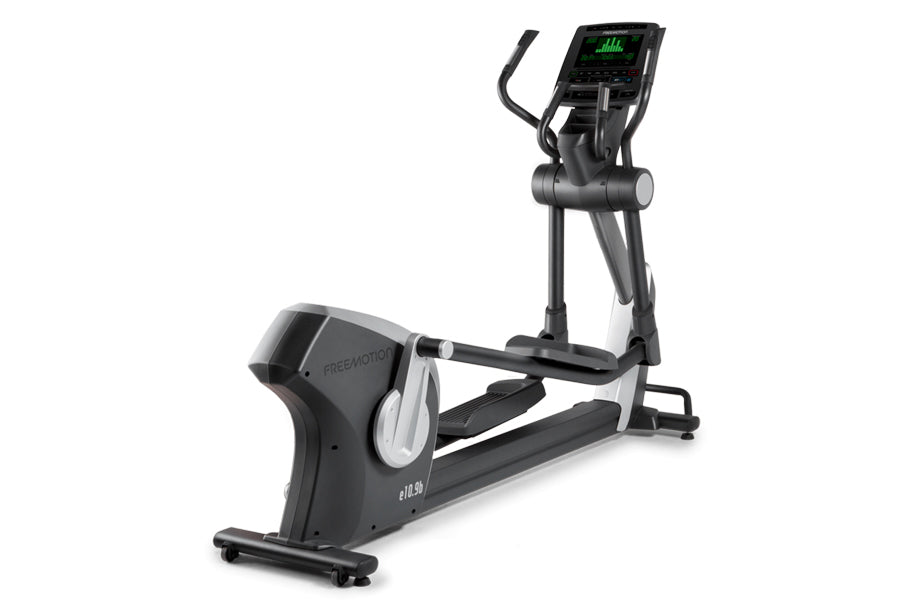

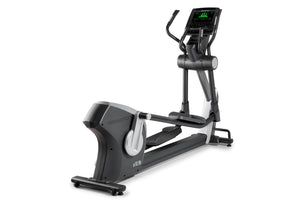

Low impact, all adventure. The e10.9b Elliptical comes with a simplified console that can be upgraded with the addition of a smart device.
Sync the iFIT-compatible machine with a smart device and the elliptical will match the resistance to recreate the actual route on the screen.
The elliptical's foot placement makes the run, walk or ski easier on the knees, joints and back.
BUILT-IN WORKOUTS
Choose between preset workouts, fitness tests, or heart rate control workouts with the touch of a button.
QUICK SELECT START & STOP
Start and stop the workout at any time with the simple touch of a button.
NON-SKID TRACTION CONTROL CUSHION PEDALS
Stay stable and comfortable through every stride with non-skid, traction control cushion pedals designed to fit multiple users with a secure grip.
24 LEVELS OF DIGITAL RESISTANCE
To burn more calories, increase intensity and improve muscle tone, simply adjust the ellipticals resistance with convenient one-touch resistance controls.
DUAL-GRIP PULSE SENSORS
Get in the heart-healthy zone with these built-in handlebar sensors.
REAR MOBILITY WHEELS
The nice-to-have wheels make this machine as mobile as it is effective. Tip up one end to move the elliptical from one place to another.
ELECTRONIC READOUTS
A simplified console lists Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace.
UPPER-BODY WORKOUT ARMS WITH PULSE SENSORS
Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.
PERSONAL ENTERTAINMENT
Entertainment capabilities make the workout experience even better. Add an optional 15.6 in / 39 cm Personal HDTV Screen.
REAR-ACCESS DESIGN
To maximize floor space and increase user safety, the e8.9b Elliptical was built with a rear-access design. It saves space and allows the user to enter and exit the machine in one easy step.

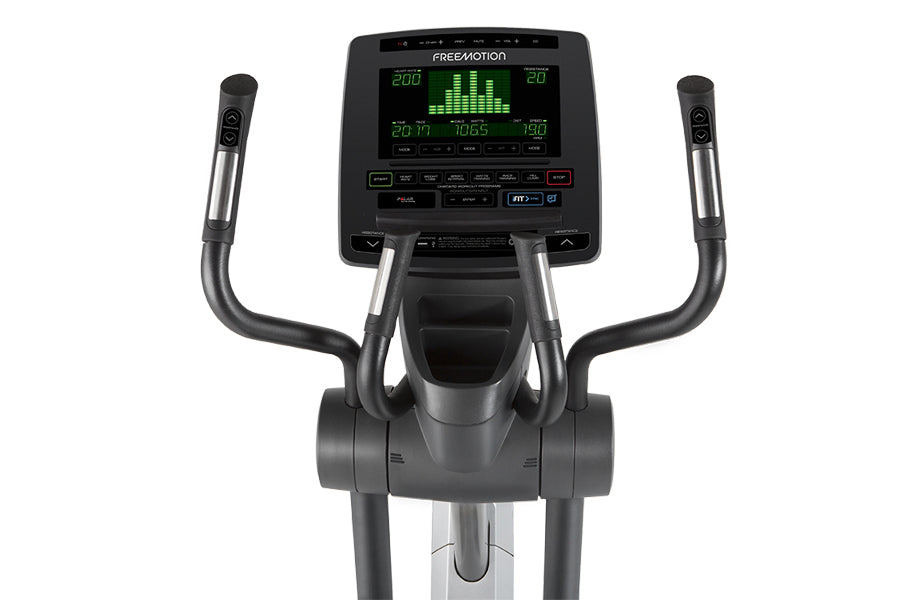

SIMPLIFIED USER INTERFACE
Get all the workout information you need in one place. Easy-to-read results lets you know what you’ve accomplished during the workout.
UPPER-BODY WORKOUT ARMS WITH SOFT GRIPS
Get a total-body, low-impact workout with upper-body workout arms. Elliptical training engages the entire body, burns more calories and tones more muscle for faster results.
IFIT® SYNC
The console of the e10.9b Elliptical goes from simple to interactive when synced with a smart device. As the industry’s first “Bring Your Own Device”-solution, the elliptical has resistance matching technology to recreate the actual terrain of video workouts filmed around the world.
Display Type | Simplified User Interface |
Resolution | N/A |
Controls | Digital resistance control |
Workout Metrics | Speed, Resistance, RPM, Distance, Calories, Time, Heart Rate, Watts and Pace |
Number of Programs | 24 |
Preset Programs | 8 Weight Loss, 8 Speed Interval, 3 Race Training, 3 Hill Climb, Heart Rate, Watt Training |
Google Maps | N/A |
Console Language(s) | EN, ES, DE, IT, PT, CH, NL, FR |
Featured Languages | N/A |
Maximum Workout Time | 99:59 (99 Minutes + 59 Seconds) |
Maximum Pause Time | 60 Seconds |
Additional Options | N/A |
ENTERTAINMENT
TV Tuner |
N/A |
Closed Captioning |
N/A |
Optional Upgrades | 15.6 in (39 cm) Personal TV with on-console controls (FMTV 84414), 900/800 MHz TV receiver (MYE900RCVR) |
CONNECTIVITY
Recommended Internet Connection |
N/A |
Ethernet Requirements |
N/A |
WiFi Connection |
2.4 / 5 GHz |
WiFi Requirements |
10Mpbs per unit download, 500Kpbs per unit upload |
Video Connections |
N/A |
Audio Connections |
N/A |
CSAFE |
Enabled |
ECOFIT |
N/A |
PRODUCT FEATURES
Drive System |
Quiet Belt Drive System, Hutchinson J10 Space-efficient rear drive |
Crank & Axle |
2 PC, 20 in / 50.8 cm Stroke |
Drive Belt |
Quiet Belt Drive System |
Pedals |
Non-skid, traction control cushion pedals |
Gear Ratio |
8.85:1 |
Resistance System |
400 Watt self-generator resistance system |
Heart Rate Monitoring |
Dual-Grip Pulse Sensors, Polar® Wireless Receiver |
Workout Fan |
N/A |
Accessory Charging |
N/A |
Accessory Holder(s) |
Water bottle holder |
Grips |
Soft touch upper body grips |
Positioning | N/A |
Transport Wheels | 3.3 in / 8.38 cm plastic wheels |
Color Options | N/A (Dell Gray is standard color) |
Unit Options | N/A |
Power Options | N/A |
PRODUCT SPECIFICATIONS
Maximum User Weight |
400 lb / 182 kg |
Step-up Height | 9.5 in / 24.1 cm |
Stride Length |
20 in / 50.8 cm stride length |
Resistance Levels |
1-24 Levels of Resistance |
DIMENSIONS & WEIGHT
Product Dimensions L x W x H |
85 x 27 x 63 in / 215.9 x 68.5 x 160 cm |
Product Weight |
286.4 lb / 130.2 kg |
Shipping Dimensions |
91.7 x 32.6 x 25.9 in / 232.9 x 82.8 x 65.7 cm |
Shipping Weight | 301.8 lb / 137.2 kg |
POWER REQUIREMENTS
U.S. & Canada |
Input 110~240V, Output 15V 3A |
International |
Input 110~240V, Output 15V 3A |
CERTIFICATIONS |
CE, BQB |
HIGH-USAGE WARRANTY (US & CANADA)
Frame |
7 Years |
Parts |
2 Years |
Console |
2 Years |
Labor |
1 Year |
Cosmetic & Wear Items |
6 Months |
HIGH-USAGE WARRANTY (INTERNATIONAL)
Frame |
7 Years |
Parts |
2 Years |
Console |
2 Years |
Labor |
1 Year |
Cosmetic & Wear Items |
6 Months |
LOW-USAGE WARRANTY (US & CANADA)
Frame |
7 Years |
Parts |
3 Years |
Console |
3 Years |
Labor |
3 Years |
Cosmetic & Wear Items |
6 Months |
LOW-USAGE WARRANTY (INTERNATIONAL)
Frame |
7 Years |
Parts |
3 Years |
Console |
3 Years |
Labor |
1 Year |
Cosmetic & Wear Items |
6 Months |
