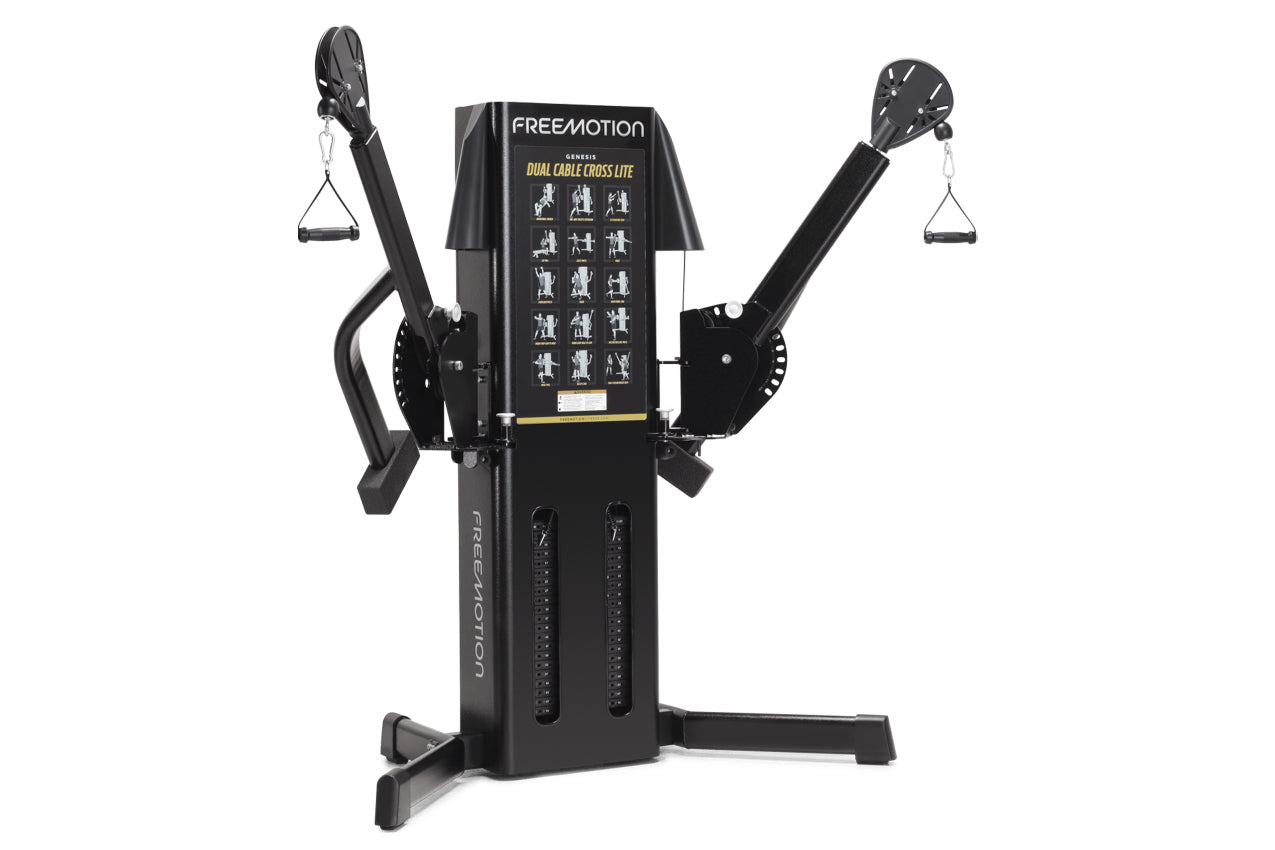

FINE-TUNE RANGE OF MOTION
Arms adjust both vertically and horizontally. This ability to precisely position the handles allows users to mimic nearly any movement in life or sport.
FREEDOM TO MOVE
The swivel pulley design combined with the extensive cable travel allows users a wide, fluid range of motion.
MOVEMENT VARIETY
Handles move independently for single and alternating arm exercises.
SPECIFY THE INTENSITY
Whether rehabbing an injury or training opposing actions, each handles is tethered to its own weight stack to dial in the resistance.
WHEELCHAIR ACCESSIBILITY
The open design makes it wheelchair accessible, welcoming to users of all abilities.
WALK UP AND WORK OUT
With no required adjustments, users can simply walk up, grab the handles and start moving.
EXTENSIVE CABLE TRAVEL
Cable length allows for full flexion and extension. Single arm: 76 in / 193 cm, two arms: 38 in / 96.5 cm.
ENCLOSED WEIGHT STACKS
The weight stacks are enclosed to limit access to moving parts for safety.
BUILT TO LAST
Constructed with 11- and 7-gauge steel and electrostatically powder-coated, this machine is built to stand up to the rigors of the weight room.
KICK PLATES
Large, 16-gauge, stainless steel kick plates protect the machine from wear and tear.
PRODUCT FEATURES
Instructional Placards | Yes |
Adjustments | Vertical and horizontal arm rotation adjustments |
Resistance | 3:1 cable ratio with 3.33 lbs (1.4 kg) of effective resistance per plate. |
Seat | N/A |
Pulleys | Dual swivel pulleys |
Rubber Feet | Molded floor protectors |
Maximum User Weight | 350 lb / 159 kg |
Americans with Disabilities Act (ADA) | Wheelchair Accessible |
PRODUCT SPECIFICATIONS
Weight Stack | Dual Weight Stacks Stack 1: 210 lb / 95.2 kg Stack 2: 210 lb / 95.2 kg |
Drop Down Weight | N/A |
Standard Frame Color | Black River, Flat Black, Platinum Sparkle, White River |
Optional Frame Color | Custom colors available upon request |
Plastic Color | Ebony |
Standard Upholstery Color | N/A |
Optional Upholstery Color | N/A |
PRODUCT DIMENSIONS & WEIGHT

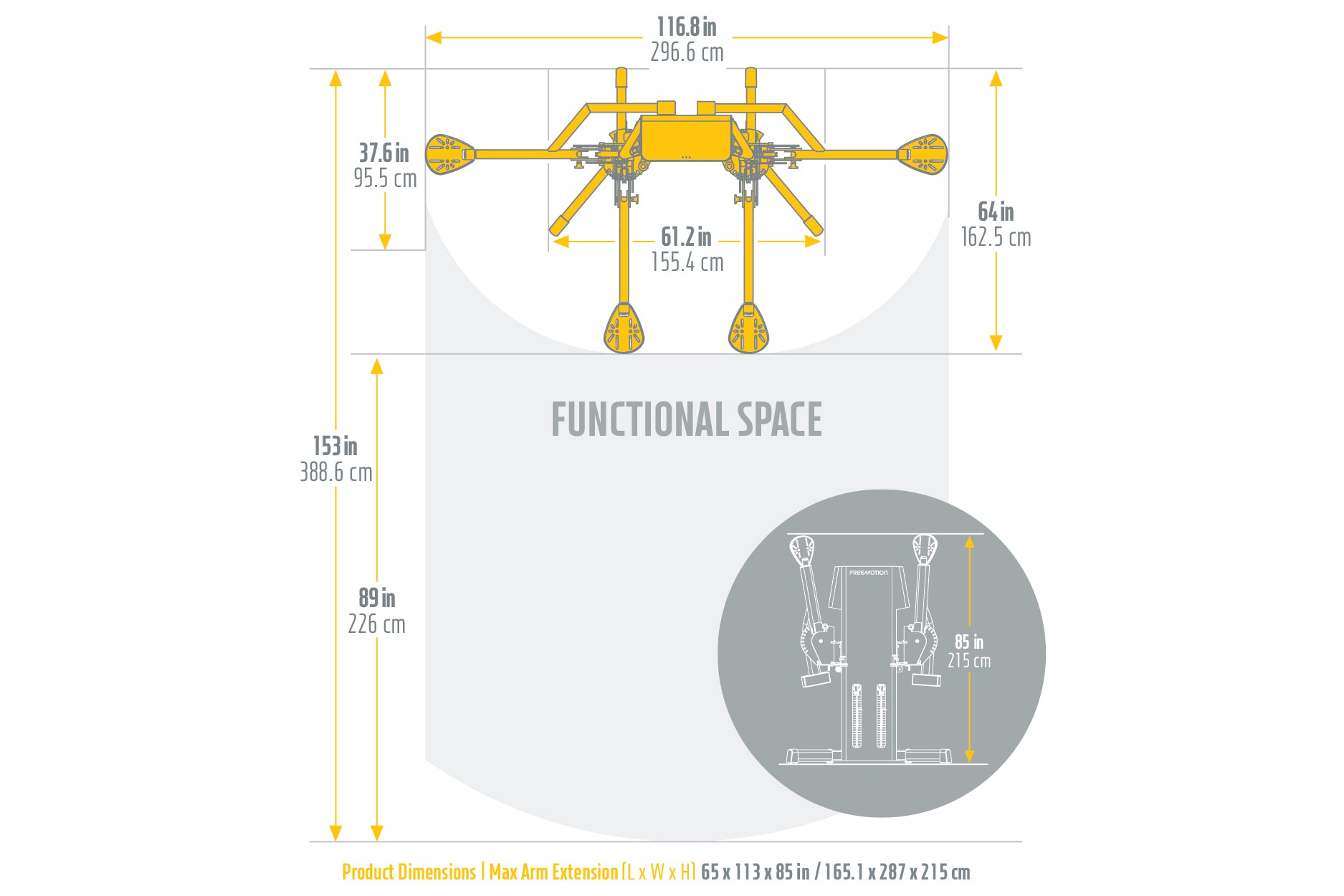

Dimensions L x W x H | 65 x 113 x 85 in / 165.1 x 287 x 215 cm |
Footprint | 65 x 113 in / 165.1 x 287 cm |
Weight | 997 lb / 452 kg |
Shipping Dimensions | Box 1: 75 x 33.5 x 13.5 in / 190.5 x 85 x 34.2 cm Box 2: 50 x 27 x 12 in / 127 x 76.5 x 30.4 cm Box 3: 19 x 17 x 12.5 in / 48.2 x 43.2 x 31.8 cm • Please note: Box 3 contains 8 smaller boxes within. 9 x 8 x 6 in 22.8 x 20.3 x 15.2 cm) |
Shipping Weight | Box 1: 341 lbs (154.6 kg) Box 2: 229 lbs (103.8 kg) Box 3: 408 lbs (185 kg) • Please note: Box 3 contains 8 smaller boxes, each weighing 51 lbs (23.1 kg) for a grand total of 408 lbs (185 kg). |
CERTIFICATIONS | EN957, CE |
Frame | 10 Years |
Bearings/Guide Rods/Pulleys/Weight Stacks | 3 Years |
Cables and Labor | 1 Year |
Handles and Accessories | 120 Days |
